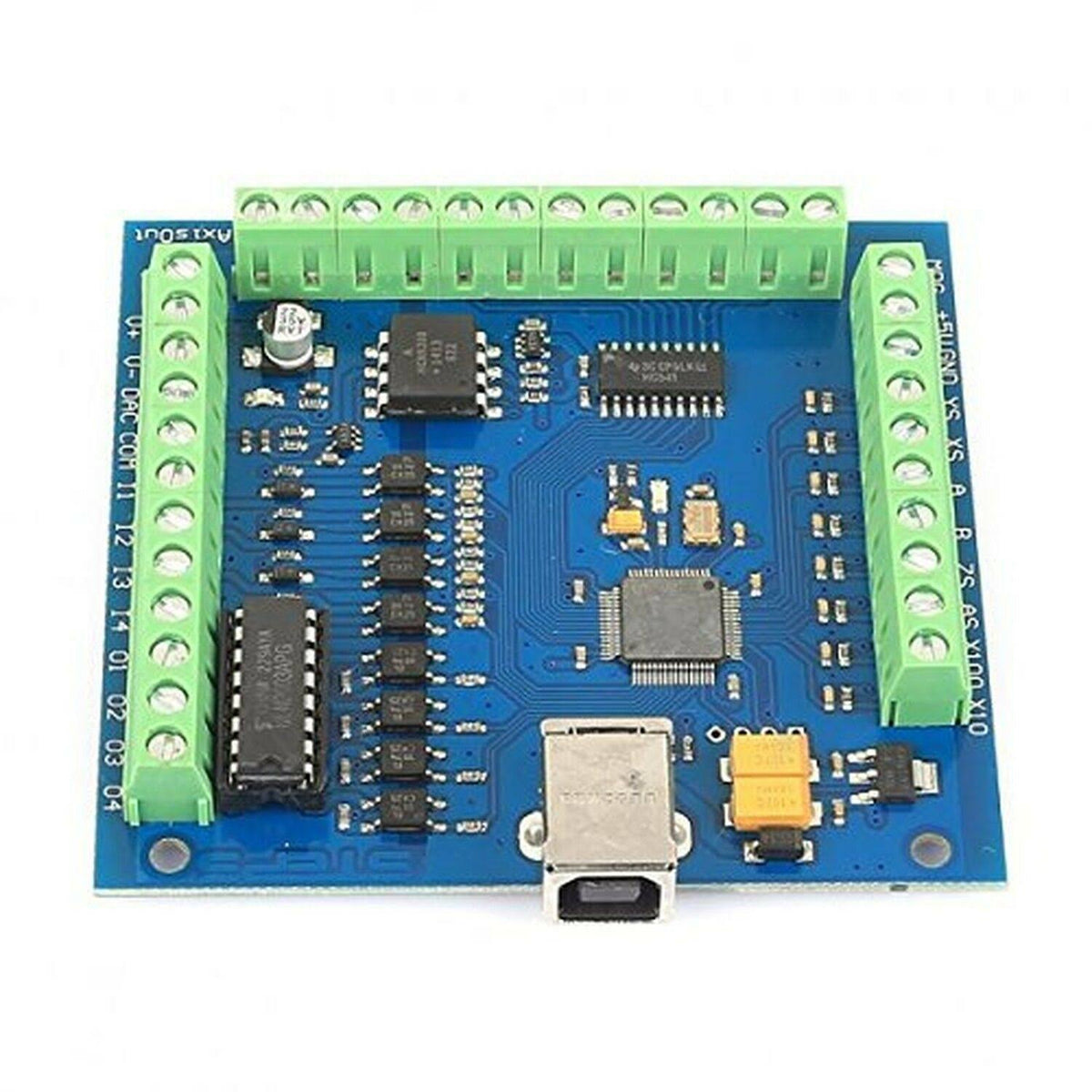

4 Axis USB CNC Motion Controller Breakout Board B603323
Sale price
$21.90
Regular price $71.89
Skip to product information
Details Description: 1. Support for 4-axis linkage, you can connect four stepper motor drives or servo drives; 2. Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor; 3. 4 general-purpose opto-couplers isolation input : can connect the limit switch, emergency stop switch, auto tool zero, home switch etc. 4. Support for connecting electronic handwheel; 5. Have 0-10V signal output , you can use mach3 software to control the spindle motor speed. 6. 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps or other device; 7. 1 status LED, indicate connection status on the board. Basic connection diagram (an Overview): Mechanical dimensions diagram:
4 Axis USB CNC Motion Controller Breakout Board B603323
Sale price
$21.90
Regular price $71.89
Shipping calculated at checkout.
